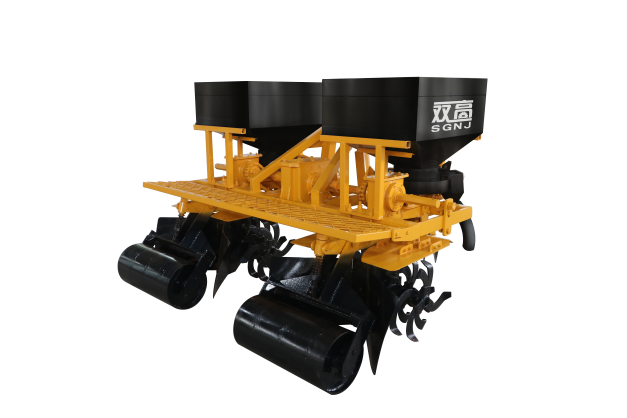

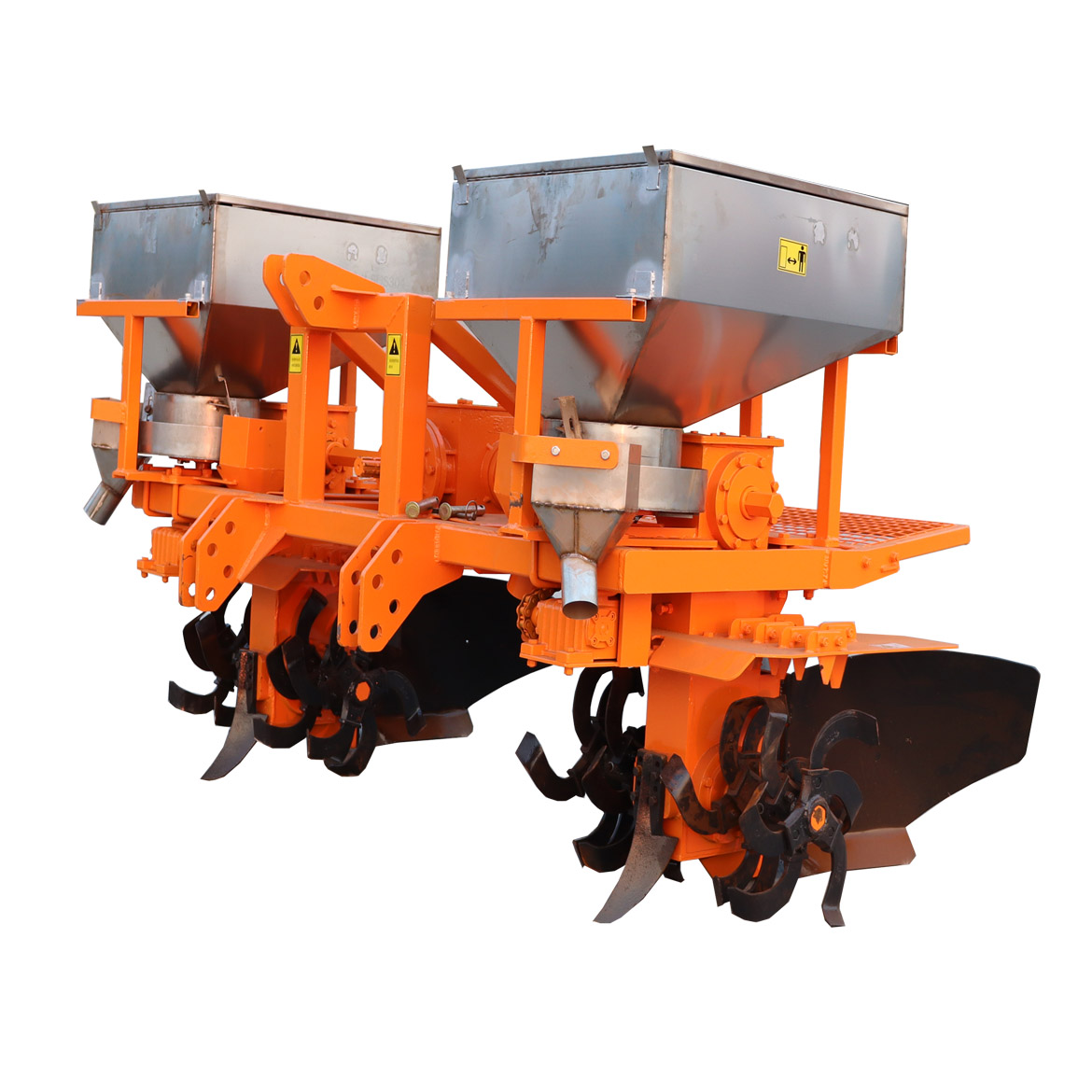

Sugarcane cultivator-fertilization hiller

Description Inquery

3ZPF-2x0.75 Sugarcane cultivator-tiller can complete the mechanized joint operation of the field management functions such as crushing soil, weeding, fertilizing, and cultivating soil at the same time, which is conducive to the growth of sugarcane root system. Moreover, it can resist drought and conserve moisture, prevent lodging, dramatically improve work efficiency, reduce cost and labor intensity.It is suitable for sugarcane field management in plains and hilly areas with small slope.

Model	3ZPF-2	Mate power	≥58.8kw
Connecting way	Tree-point suspension	Space of soil plough for per ridge	1100-1800mm
Direction of cutter roll	Clockwise	Number of rotary blade	4×6, 4×12
Cutter roll speed	290 r/min	Drive mode of cutter roll	Gear drive
Working width	2x750mm	Number of row in one operation	2 row
Fertilizer tank	2 pic	Adjustable scope of planting space	1100-1800mm
Number of Fertilizer outlet	4pic	Volume of each fertilizer tank	0.175 m3
Oversize	2330×1400×1450mm	Weight	950kg

Specification

Three point suspension, transmission shaft

The tractor’s three point suspension arm is connected to drive the operation, and the transmission shaft is coupled to the tractor power output shaft and the power input shaft of the transmission box of the cultivator.

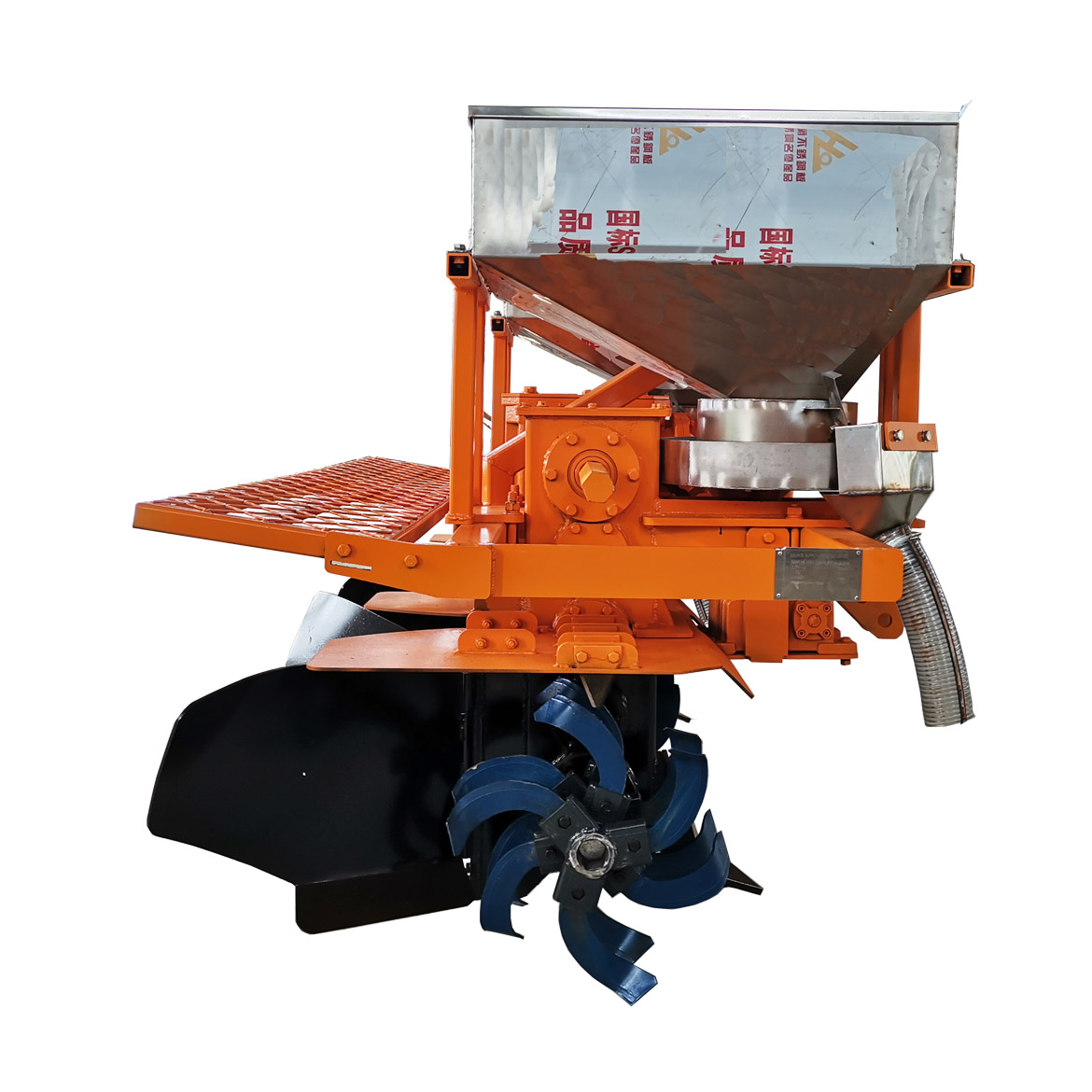

Fertilizer structure

The reducer is driven by the main transmission box via the hexagon axis to rotate the fertilizer application turntable of the fertilizer tank, and the fertilizer flows out along the leaves of the fertilizer application turntable through the fertilizer outlet. The size of the fertilizer outlet is adjusted to control the fertilizer outflow.

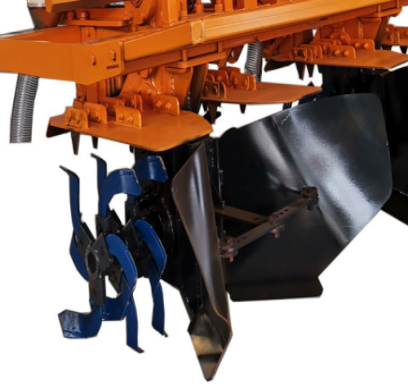

Blade crusher assembly

Blade crusher installed on the rotary cultivator fender and the plough to form a crushing cavity. Part of the cane leaves can be crushed by the rotary blade and blade crusher, which can be prevented from winding the blade roller

Main transmission box assembly

The power of the tractor transfer to the transmission box through connecting with the tractor and the transmission shaft, and then distributes to the left and right rotary cultivation transmission boxes so as to realize the rotation of the rotary cultivation cutter roller.

Fertilizer device

the reducer is driven by the main transmission box via the hexagon axis to rotate the fertilizer application turntable of the fertilizer tank, and the fertilizer flows out along the
