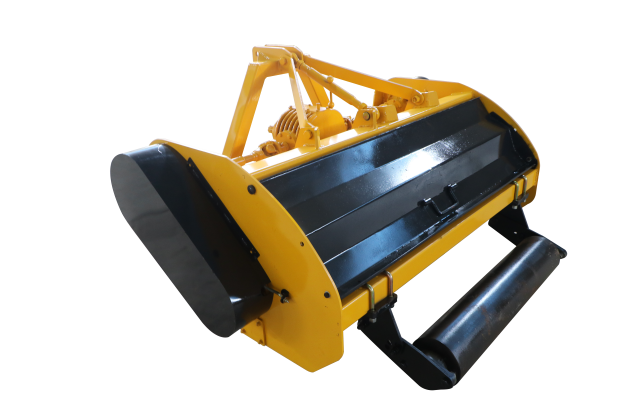

Heavy Duty Field Straw Chopper

Description Inquery

Strong Crop straw returning machine
rotary tiller with wide L+I blades

1GYF series of rotary Straw Crushing is adopted middle gear and double Side belt drive transmission system, mounted with the tractor though the three point suspension. The quality is reliable and the performance is well.
Save time,reduce labour and cost.
Matched with 150hp tractor.
The blade is 65Mn steel. HRC: 43-48.

Model	unit	1GYF-
Model	unit	180D	200D
Working width	cm	180	200
Cutter shaft speed	r/min	2200
Rotation speed of input shaft	r/min	540
PTO shaft spline		8 spline(Diameter 48mm)
Size	mm	2300x1800x1500	2500x1800x1500
Arbor Configuration	/	Single Horizontal Axis
Transmission type	/	Double Side belt drive
Adjustable tailgate	/	yes
Supporting wheel(Adjustable)	/	yes
No.of blades		90	102
Type of blade		I+L-200
Total weight	kg	1050	1100
Matched power	hp	150	180
Linkage		Three-point suspension Ⅱ type	Three-point suspension Ⅲ type
The selectable items		PTO transmission shaft in 8 spline or 6 spline
